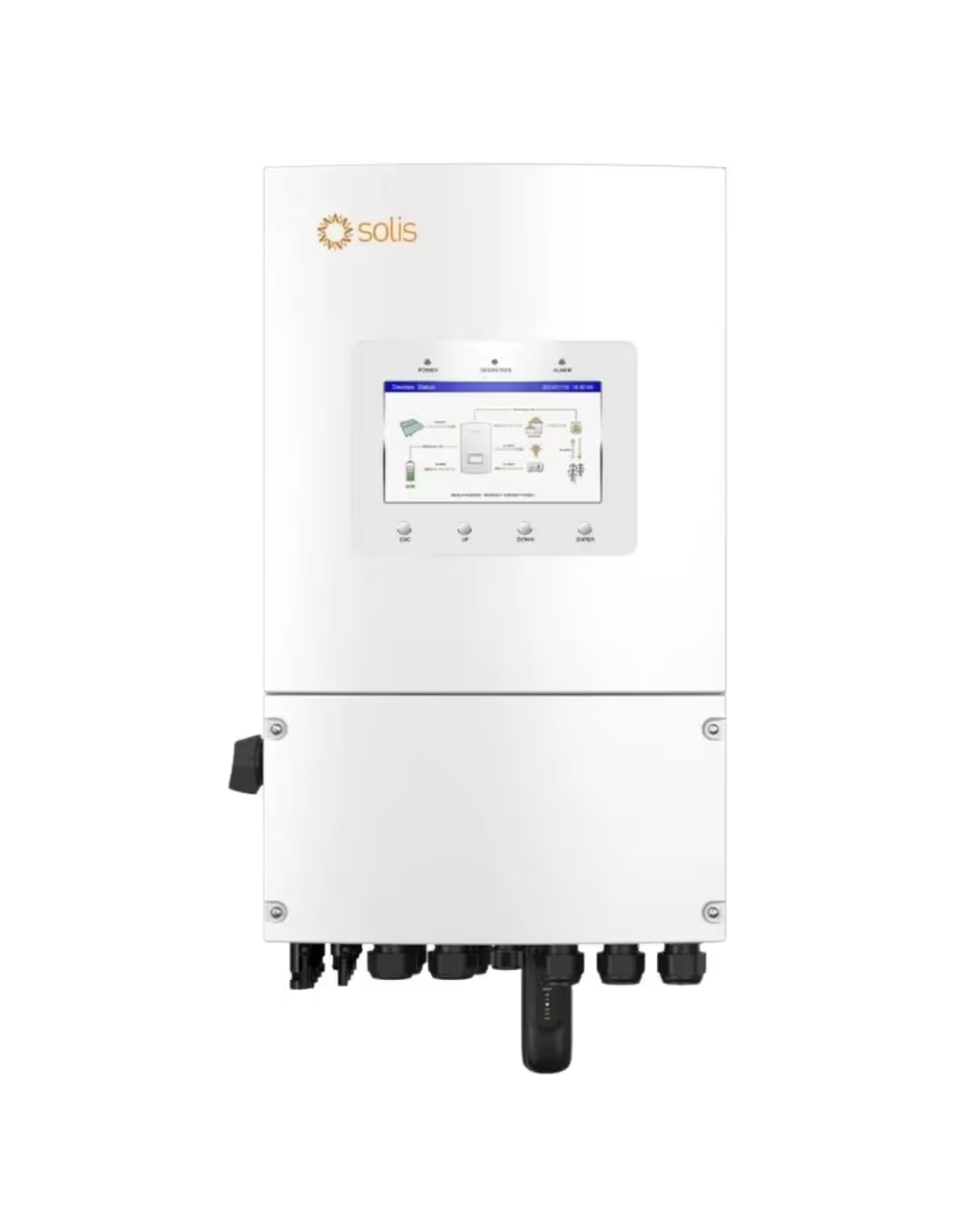

Solis 10KW Single Phase LV Hybrid Inverter
  • Solis 10KW Single Phase LV Hybrid Inverter
Solis 10KW Single Phase LV Hybrid Inverter

Solis 10KW Single Phase LV Hybrid Inverter Buy Online at Best Price in Pakistan

Vendor: Solis
Availability: In stock
Rs.385,000.00 Rs.375,000.00
Hurry up! Only 10 left
Enquire on WhatsApp
As Per OEM Warranty
Advance Payment Policy Applies

Fast Delivery | Estimated 48–72 Hours

Reserve Your Product with Full Advance Payment

Heavy Weight Parcels Shipped via Cargo

Cargo Delivery Charges Payable on Delivery
Solis 10KW Single Phase LV Hybrid Inverter
Solis 10KW Single Phase LV Hybrid Inverter
Rs.375,000.00 Rs.385,000.00

Secure Payment Processing

Reliable Nationwide Delivery

100% Genuine & Authentic Products

Warranty-Backed Products

Competitive Prices Across Pakistan

Secure & Reliable Ordering

Solis S6-EH1P(3-10)K-L-PLUS Single-Phase Hybrid Inverter

The S6-EH1P(3-10)K-L-PLUS is a single-phase hybrid inverter with a low battery voltage range of 40-60V. The advanced inverter series features two integrated MPPTs, with each MPPT supporting a current capacity of up to 21A.

The S6-EH1P(3-10)K-L-PLUS series is compatible with a wide range of lithium and lead-acid batteries. Designed for both on-grid and off-grid applications, it provides generator compatibility, grid-tied inverter coupling, parallel operation, and smart load management.

Technical Specifications

Specification Details
Models 3K / 3.6K / 5K / 6K / 8K / 9K (21A) / 10K (21A)
Recommended Max. PV Array Size 6kW / 7.2kW / 10kW / 12kW / 16kW / 18kW / 20kW
Max. Usable PV Input Power 4.8kW / 5.76kW / 8kW / 9.6kW / 12.8kW / 14.4kW / 16kW
Max. Input Voltage 500V
Rated Voltage 330V
Start-up Voltage 90V
MPPT Voltage Range 90-435V
Max. Input Current 16A / 16A, 32A / 32A, 42A / 42A
Max. Current per DC Input 16A / 21A
Max. Short Circuit Current 20A / 20A, 40A / 40A, 48A / 48A
MPPT Number / Input Strings 2/2, 2/4
Battery Type Li-ion / Lead-acid
Battery Voltage Range 40-60V
Max. Charge / Discharge Power 3kW / 3.6kW / 5kW / 6kW / 8kW / 9kW / 10kW
Max. Charge / Discharge Current 70A / 80A / 112A / 135A / 190A / 200A / 210A
Communication CAN / RS485
Rated Output Power 3kW / 3.6kW / 5kW / 6kW / 8kW / 9kW / 10kW
Max. Apparent Output Power 3kVA / 3.6kVA / 5kVA / 6kVA / 8kVA / 9kVA / 10kVA
Operation Phase 1/N/PE
Rated Grid Voltage 220V / 230V
Rated Grid Frequency 50Hz / 60Hz
Input Voltage Range 187-253V
Backup Switch Time <10ms
Max. AC Passthrough Current 35A / 40A / 50A / 60A / 65A
Max. Efficiency 96.2%
EU Efficiency 96.1%
PV/AC Battery Charging Efficiency 95.3% / 93.9%
Battery-to-AC Efficiency 93.8%
Operating Temperature -25°C to +60°C
Ingress Protection IP66
Max. Operating Altitude 3000m
Dimensions 335 × 560 × 253mm
Weight 23kg / 23.5kg / 23.8kg
Cooling Natural convection / Intelligent redundant fan-cooling
Battery Voltage 48V
Frequency 50Hz
Voltage 220V

Protection Features

  • Surge protection
  • Output over-current protection
  • Insulation resistance monitoring
  • Residual current detection
  • Integrated PV switch
  • DC reverse-polarity protection
  • Integrated AFCI 2.0 — Optional
  • Anti-islanding protection
  • IP66 protection
  • Protection class I / II (PV and BAT), III (MAINS, BACKUP and GEN)

Warranty

5 Years
