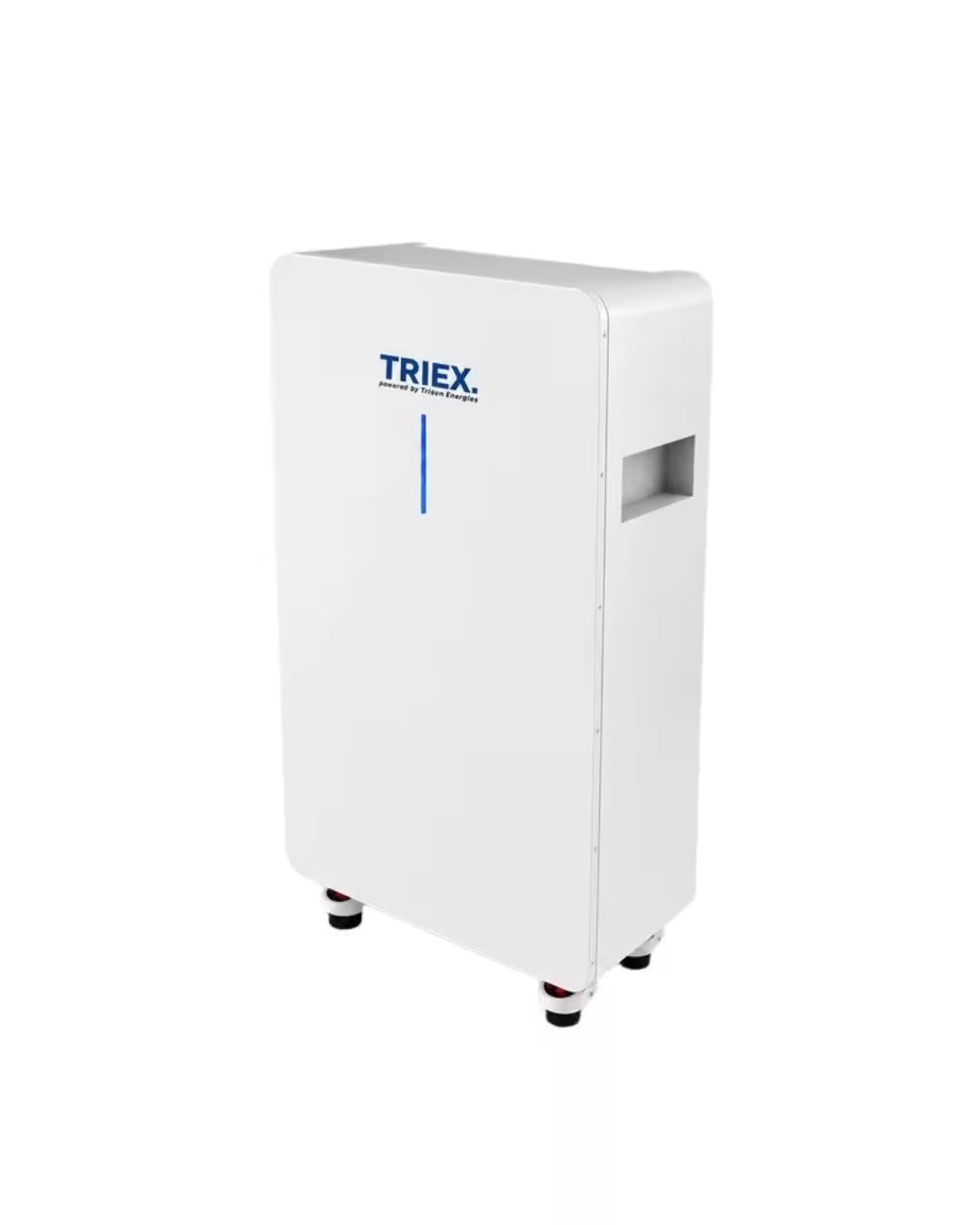

TRIEX TXL-16.07 16kWh Low Voltage Lithium Battery

Price:

Rs.590,000.00
Rs.690,000.00

Vendor:

TRIEX

Type:

Lithium Battery

Availability:

Quantity:

TRIEX TXL-16.07 16kWh Low Voltage Lithium Battery

The TRIEX TXL-16.07 is a 16.07kWh low voltage LiFePO4 energy storage battery designed for solar backup and energy storage applications. It offers 15.27kWh usable energy, 314Ah rated capacity, advanced BMS protection, and floor-mounted installation for residential and commercial solar systems.

Key Features

16.07kWh rated energy with 15.27kWh usable energy
51.2V low voltage LiFePO4 battery system
314Ah rated capacity at 0.5C and 25°C
90% depth of discharge
8000+ cycle life under stated datasheet conditions
Advanced BMS for reliable performance and protection
CAN / RS485 / RS232 communication
Supports up to 16 units in parallel
Floor-mounted design with IP20 protection class
5-year warranty as per manufacturer datasheet

Technical Specifications

Model	TXL-16.07
Battery Type	LFP / LiFePO4
Cell Model	LFP 3.2V 314Ah
Combination Mode	16S1P
Rated Energy	16.07kWh
Usable Energy	15.27kWh
Rated Capacity	314Ah @ 0.5C @ 25°C
Rated Voltage	51.2V
Voltage Range	43.2V - 57.6V
Rated Charge / Discharge Current	157A
Max Charge / Discharge Current	200A
Cycle Life	≥8000 cycles @ 70% EOL, 80% DOD, 0.5C/0.5C @ 25°C
Operating Temperature	Charge: 0°C to 55°C / Discharge: -20°C to 55°C
Relative Humidity	5% - 95%
Altitude	≤4000m
Protection Grade	IP20
Installation Mode	Floor Mounted
Firefighting	Aerosol optional
Max Parallel Numbers	16
Communication	CAN / RS485 / RS232
Dimensions	500 × 250 × 920mm, ±2mm
Weight	122 ± 2kg
Certificates	CE, UN38.3
