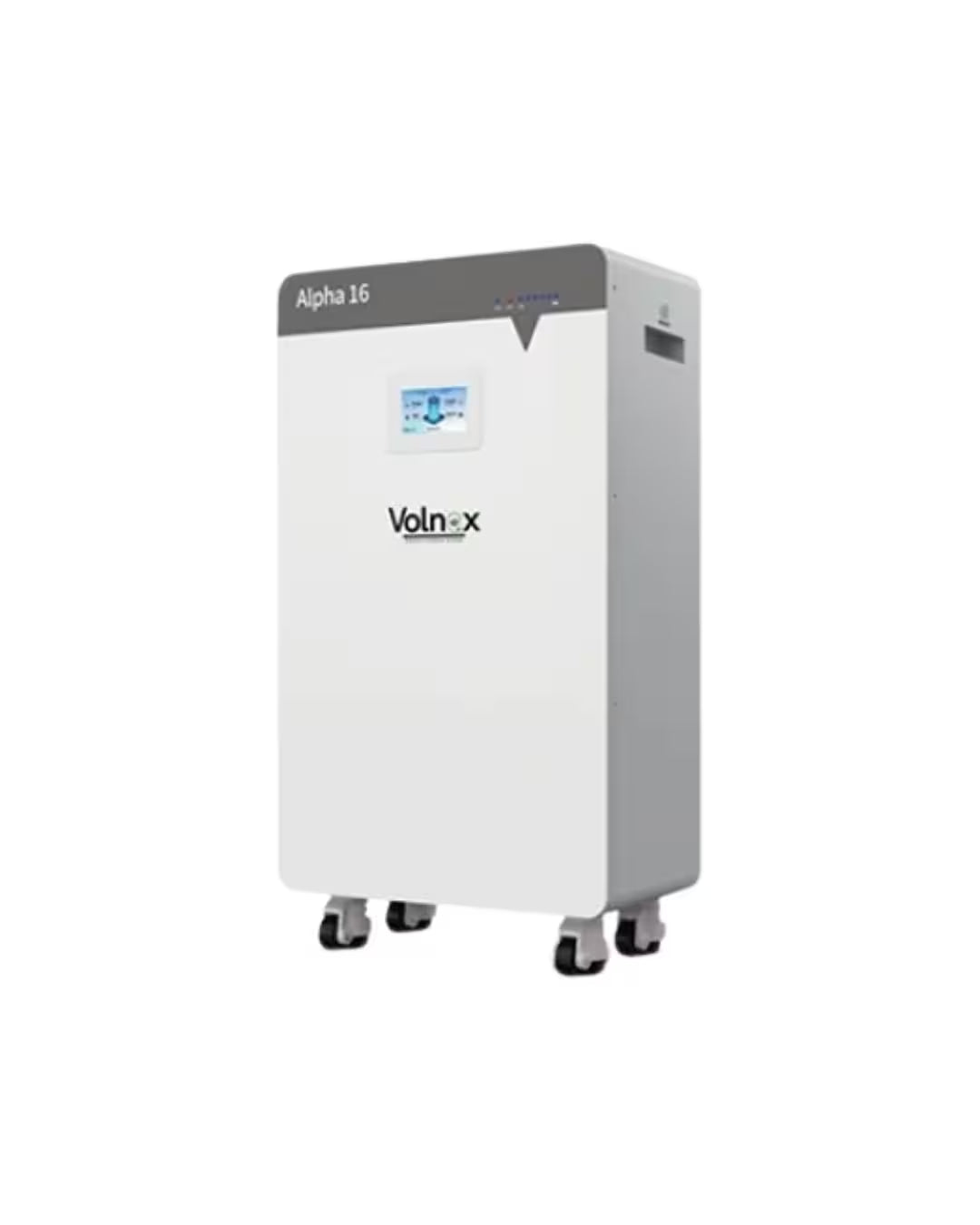

Volnex Alpha 16 Low Voltage Lithium Battery
The Volnex Alpha 16 is a low voltage residential energy storage battery built with LFP / LiFePO4 cell technology. It is designed for solar backup and energy storage systems, with 314Ah capacity, 51.2V nominal voltage, LCD monitoring, multi-protocol communication, and scalable parallel connection support.
Key Features
- Low voltage residential lithium battery
- LFP / LiFePO4 battery technology
- 16,076Wh battery usable energy
- 314Ah capacity with 51.2V nominal voltage
- Maximum charge and discharge current: 200A
- SOC status indicator, LED indicator and LCD display
- CAN / RS485 / RS232 / WiFi communication
- Max. 15 batteries in parallel
- Floor stand installation with roller movement support
- IP20 ingress protection rating
- UN38.3 / IEC62619 / IEC61000 compliance
Technical Specifications
| Model | Alpha 16 |
| Battery Type | LFP / LiFePO4 |
| Battery Usable Energy | 16076Wh |
| Cell Capacity | 314Ah |
| Nominal Voltage | 51.2Vdc |
| Operating Voltage | 44.8V - 56.16V |
| Max Charge / Discharge Current | 200A |
| Display | SOC status indicator, LED indicator, LCD display |
| Communication | CAN / RS485 / RS232 / WiFi |
| Dimensions | 485 × 245 × 785mm |
| Weight | 122kg |
| Installation | Floor stand |
| Operating Temperature | Charge: 0°C to 50°C / Discharge: -15°C to 50°C |
| Environmental Humidity | ≤95% RH, no condensation |
| Ingress Protection Rating | IP20 |
| Cycle Life | 6000 cycles @ 80% DOD / 25°C / 0.5C / 60% EOL |
| Warranty Period | 10 years warranty as per datasheet terms |
| Scalability | Max. 15 batteries in parallel |
| Application | On Grid / Off Grid + Backup / Off Grid |
| Compatible Inverters | Refer to manufacturer compatible inverter list |
| Compliance | UN38.3 / IEC62619 / IEC61000 |
Note: Price and stock should be updated before publishing. Final installation compatibility should be confirmed by a qualified solar installer.
