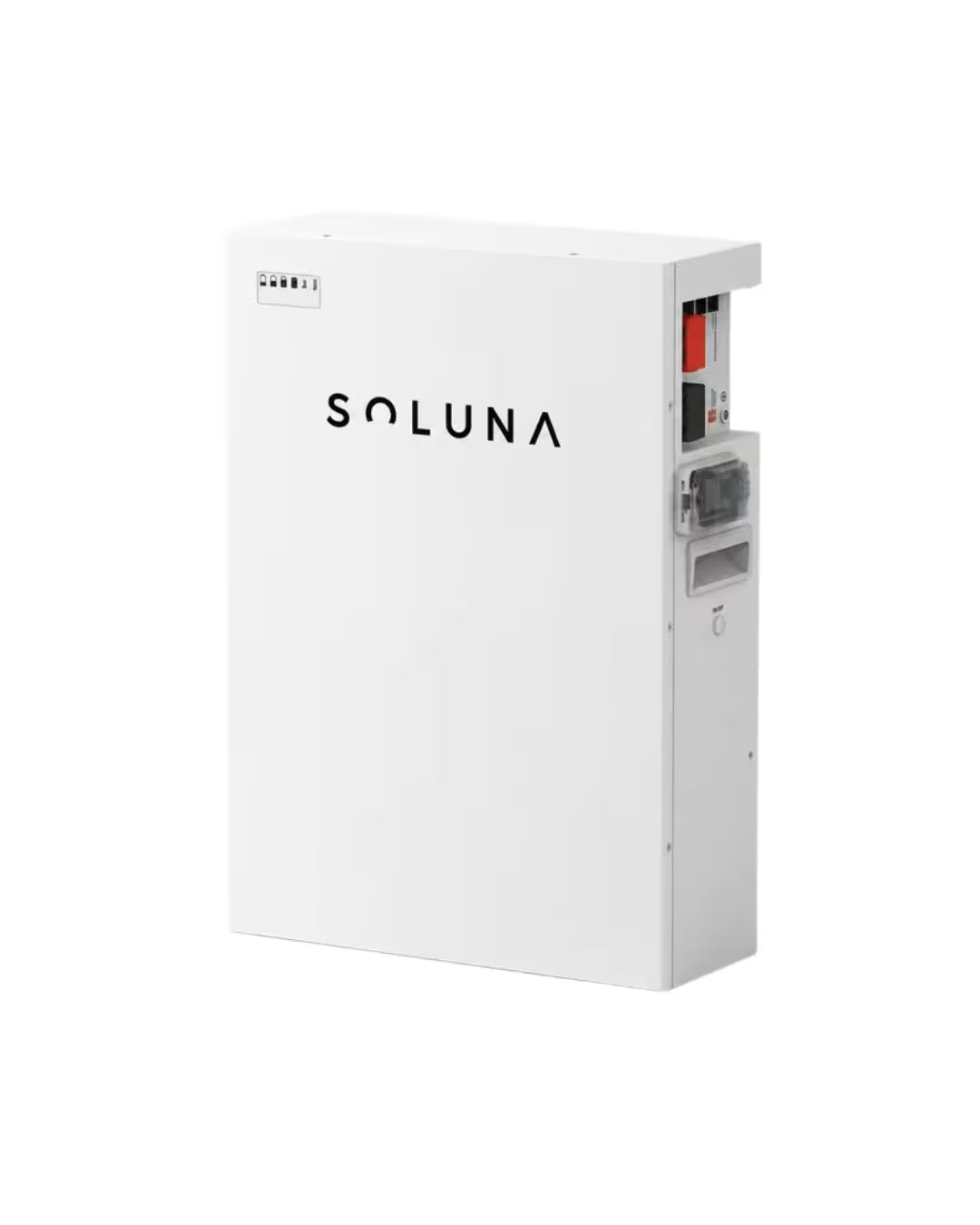

The Soluna Lyra 5K is a 5.12kWh LFP lithium battery designed for solar backup and energy storage systems. With a 51.2V nominal voltage, 100A discharge current, ≥6000 cycle life, and built-in Wi-Fi monitoring, it is suitable for homes, offices and installer projects. Expandable up to 80kWh via parallel connection (up to 16 units).
Key Features
- Battery Chemistry: Lithium Iron Phosphate (LFP) — stable, safe, long-life
- Cycle Life: ≥6000 cycles with 90% Depth of Discharge
- Expandable: Stack 1 to 16 units in parallel for up to 80kWh total capacity
- Built-in Wi-Fi + RS485 + CAN: Compatible with most hybrid inverters
- Flexible Installation: Wall-mount or floor-stand
- Built-in Communication Cables: Ready to connect out of the box
- 7-Year Warranty
Technical Specifications
| Physical Characteristics | |
|---|---|
| Height | 595 mm |
| Width | 420 mm |
| Depth | 160 mm |
| Weight | 47 kg |
| Installation | Floor-stand, Wall-mounted |
| Electrical Characteristics | |
| Battery Type | Lithium LFP |
| Nominal Capacity | 5.12 kWh |
| Nominal Voltage | 51.2 V |
| Voltage Range (Usable) | 48 – 57.6 V |
| Max Charge Current | 75 A |
| Discharge Current | 100 A (1C Rate) |
| Depth of Discharge (DoD) | 90% |
| Internal Resistance | <40 mΩ |
| Cycle Life | ≥6000 |
| Round-trip Efficiency | >95% |
| DC Disconnect | MOSFET Fuse |
| BMS & Communication | |
| BMS Power Consumption | <3 W (work) / <100 mW (sleep) |
| Monitoring | System voltage, current, cell voltage, cell temperature |
| Communication Ports | CAN, Wi-Fi, RS485 |
| Operating Conditions | |
| Operating Temperature | -10 to 50°C |
| Recommended Operating Temp | 15 to 30°C |
| Recommended Storage Temp | 15 to 30°C |
| Humidity | 5 to 95% |
| Max Altitude | 2000 m |
| Cooling | Natural Convection |
| Certification & Warranty | |
| Ingress Protection | IP20 |
| Transportation | UN38.3 |
| Hazardous Classification | Class 9 |
| System Configuration | 1 to 16 units in parallel |
| Warranty | 7 Years |
