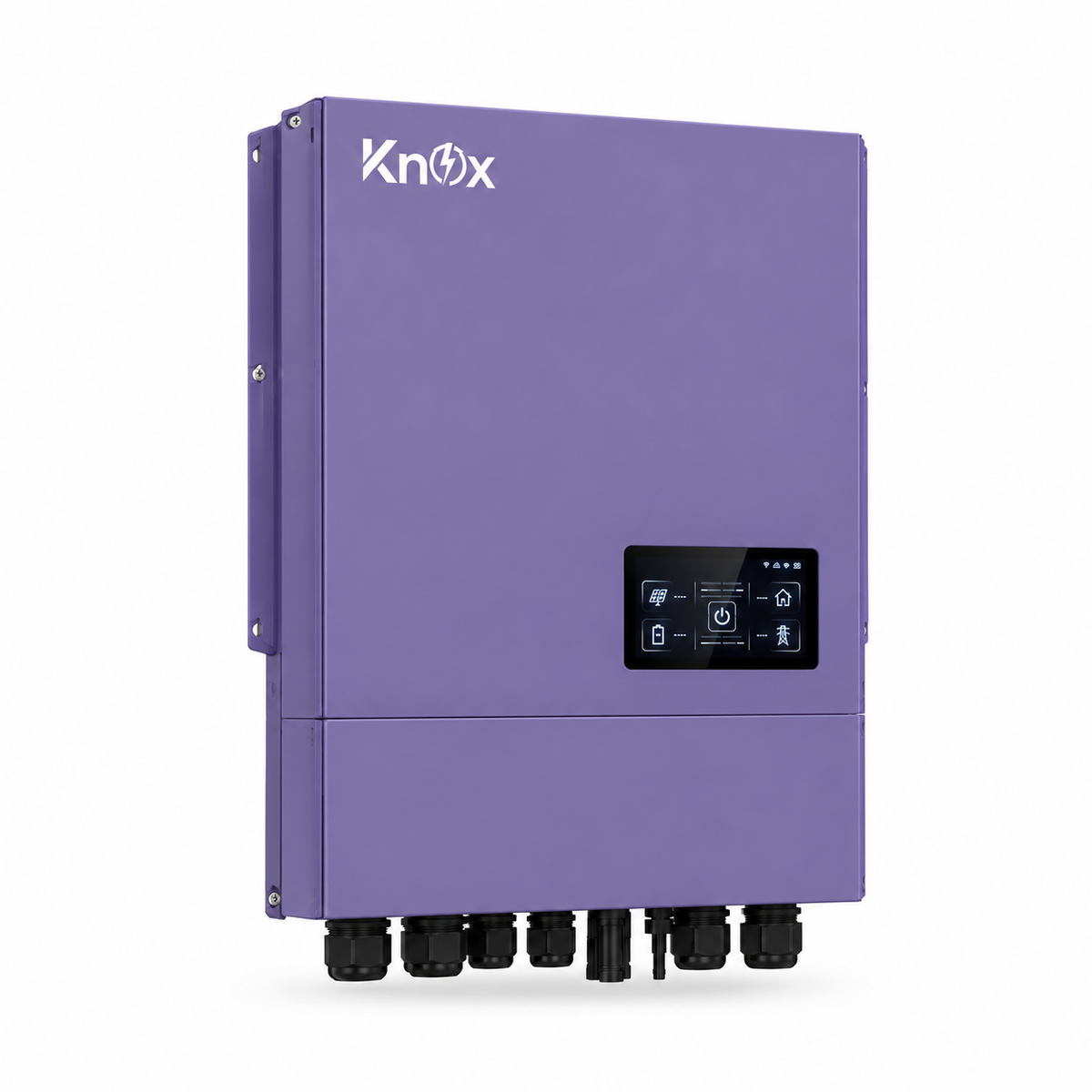

Knox Zapher 6.6kW PV12000 Single Phase Hybrid Inverter

The Knox Zapher 6.6kW Single Phase Hybrid Solar Inverter is designed for efficient solar energy management with grid feeding and battery backup capabilities. Featuring a maximum PV input capacity of 12,000W and dual MPPT trackers, it helps maximize solar energy generation and utilization.With built-in WiFi, an HMI touchscreen, dual generator and AC inputs, and smart dual-output functionality, the Zapher provides flexible energy management for residential and commercial applications. Its IP65/IP66-rated protection and battery-independent operation offer added flexibility and reliability.

Key Features

  • Rated Output Power: 6,600W
  • Maximum PV Input Power: 12,000W
  • Dual MPPT Trackers
  • Dual GEN/AC Input for automatic switching between generator and utility mains
  • Built-in WiFi and HMI Touchscreen
  • Parallel Operation: Supports up to 9 units
  • IP65/IP66 Waterproof and Dustproof Protection
  • Battery-Independent Operation
  • Dual Output for Smart Load Management
  • Grid Feeding Capability

Technical Specifications

Brand Knox
Series Zapher
Model 6.6kW (PV12000)
Phase Single Phase
Maximum PV Input Power 12,000W
Rated Output Power 6,600W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Operating Voltage Range 120–450VDC
Maximum PV Array Current per MPPT 2 × 21A
Maximum PV Array Short Circuit Current per MPPT 28.7A
Number of MPPT Trackers 2
Nominal Grid Output Voltage 220 / 230 / 240VAC
Nominal Output Current 26.25A
Feed-in Grid Voltage Range (Pakistan) 182–260VAC
Maximum Conversion Efficiency 97%
Feed-in Grid Frequency Range (Pakistan) 45.1–54.9Hz
Power Factor >0.99
Grid Input Voltage Range 90–300VAC
Grid Input Frequency 50Hz / 60Hz (Auto Sensing)
Transfer Time <20ms (home appliances), <50ms (parallel operation)
Dimensions 435 x 325 x 171 mm
Net Weight  16 kg

Best For

Suitable for homes and small commercial setups looking for an efficient hybrid solar solution with battery backup and high solar PV input capacity
