Solis IntelliHouse 5KW Lithium Battery Buy Online at Best Price in Pakistan

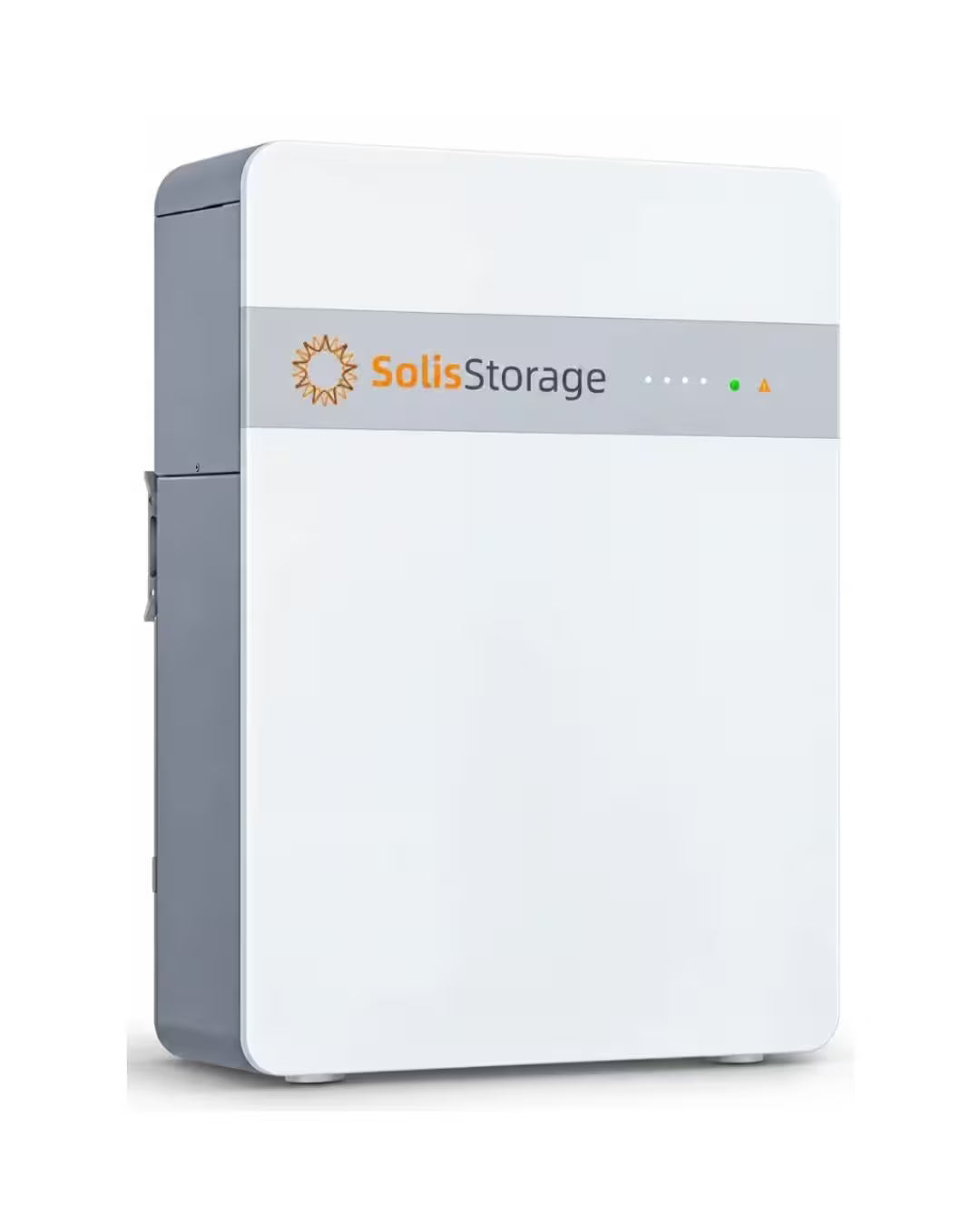

Solis IntelliHouse 5kWh Lithium Battery Overview

The Solis IntelliHouse 5kWh Lithium Battery is a compact and reliable energy storage solution designed for residential solar systems and compatible hybrid inverters. It uses advanced LiFePO4 battery technology and provides 5kWh of nominal energy capacity with 100Ah cell capacity.

Its slim enclosure supports both wall-mounted and floor-standing installation, making it suitable for homes where installation space is limited. The battery also features CAN and RS485 communication for coordinated operation with compatible inverters.

Built-in electrical and temperature protection, along with DC breaker and fire protection functionality, provides additional safety during normal operation. With an operating voltage range of 44.8V to 57.6V and more than 95% depth of discharge, the IntelliHouse is designed for efficient residential energy storage.

Customers searching for solis 5kw lithium battery price in Pakistan should note that this product provides 5kWh of stored energy. The terms kW and kWh describe different electrical characteristics: kW refers to power, while kWh refers to energy capacity.

Key Features and Benefits

LiFePO4 Battery Technology

The Solis IntelliHouse 5kWh uses LiFePO4 (Lithium Iron Phosphate) battery chemistry, which is widely used in solar energy storage applications. Its 100Ah cell capacity makes it suitable for storing solar energy for later household use.

More Than 95% Depth of Discharge

The battery supports a depth of discharge greater than 95%, allowing users to utilize a substantial portion of its nominal storage capacity. Actual usable energy can vary depending on battery settings, operating conditions, temperature and inverter efficiency.

Integrated Safety Protection

The IntelliHouse includes protection against overvoltage, undervoltage, overcurrent and abnormal temperature conditions. It also incorporates a DC breaker and fire protection function for additional system safety.

Proper installation, electrical protection and compatible inverter configuration are still essential for safe and reliable operation.

CAN and RS485 Communication

Built-in CAN/RS485 communication interfaces allow the battery to exchange operating information with compatible solar inverters. This enables coordinated charging, discharging and battery management.

Before installation, communication compatibility should be checked for the exact inverter model and firmware version.

Slim and Flexible Installation

With dimensions of 470 × 655 × 175mm and a weight of approximately 47kg, the IntelliHouse has a slim form factor suitable for residential installations. It can be installed in either a wall-mounted or floor-standing configuration.

The battery also features IP66 protection and a C5M anti-corrosion classification, providing additional protection against environmental conditions when installed according to manufacturer requirements.

Best For

The Solis IntelliHouse 5kWh Lithium Battery is designed for residential solar energy storage and compatible low-voltage hybrid inverter systems.

It is a suitable option for households that want to store excess daytime solar energy and use it later. When connected to a compatible backup inverter, the stored energy can also be used to support selected household loads during electricity interruptions.

Its compact design makes it particularly useful for installations where space is limited. In addition, support for parallel connection allows the storage system to be expanded when higher capacity is required.

Not Ideal For

The IntelliHouse should not be used with incompatible high-voltage battery systems or inverters that do not support its operating voltage, current limits or communication requirements.

It may also not provide sufficient storage for properties with very high continuous loads or long backup requirements. Therefore, both battery capacity and discharge current should be considered before selecting the system.

Battery Capacity: kWh, Ah and Usable Energy

The Solis IntelliHouse provides 5kWh of nominal energy capacity and a 100Ah cell capacity. These specifications describe different electrical characteristics.

Kilowatt-hours (kWh) indicate the amount of energy stored in the battery, while ampere-hours (Ah) describe electrical charge capacity.

The battery operates between 44.8V and 57.6V. Customers researching solis lithium battery 48v 100ah price in Pakistan or 48v 100ah lithium ion battery price in Pakistan should verify the exact voltage and communication requirements of their inverter before purchase.

The IntelliHouse supports more than 95% depth of discharge, although actual usable energy can vary according to operating conditions, system settings and inverter efficiency.

Battery Chemistry and Cycle Life

The IntelliHouse uses LiFePO4 chemistry with A+ grade battery cells. The cells are rated for a cycle life of at least 8,000 cycles under specified laboratory test conditions.

The stated cell testing conditions include a temperature of 25°C, a 0.2C charge/discharge rate, 80% depth of discharge and 70% state of health.

Actual battery lifespan can vary depending on temperature, charging and discharging practices, daily energy usage and installation conditions. Therefore, the laboratory cycle rating should not be considered a guaranteed operating lifespan.

Battery Management System and Safety

The Solis IntelliHouse incorporates protection functions for voltage, current and temperature-related conditions. Its SOC and status indicators allow users to monitor essential battery information.

An integrated DC breaker and fire protection function provide additional safeguards. However, correct installation, suitable electrical protection and proper inverter configuration remain important for safe operation.

Charging and Discharging Performance

The recommended charge and discharge current is 50A, while the maximum discharge current is 100A.

The recommended charge/discharge rate is 0.5C/0.5C, while
